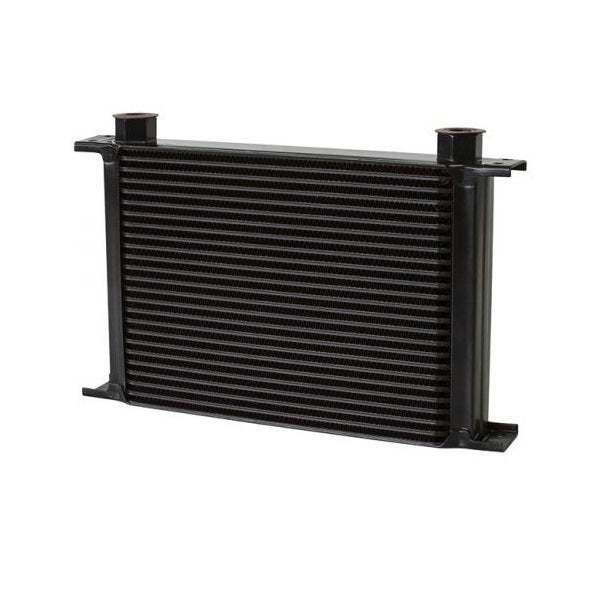

Aeroflow 19 Row Universal Oil Cooler

Aeroflow offers a tremendous selection of the industry's highest quality coolers in a wide range of applications and profiles. These stack plate (modular style) coolers are fully brazed on all contact surfaces inside and out, and feature a brazed seam that withstands vibrations and pulsations in the toughest environments. Any performance vehicle can benefit from an Aeroflow cooler — motorhomes, tow vehicles, passenger cars and even motorcycles can all realise extended engine and/or transmission efficiency and life.

Technical Specifications:

• Rows: 19
• Depth: 51mm
• Length: 330mm
• Height: 146mm
• Connections: -10 female ORB threads
• For use in engines, transmissions, hydraulic systems, etc.
• Max working pressure: 10 Bar (1 MPa or 145 PSI)
• Burst pressure: 25 Bar (2.5 MPa or 362 PSI)
