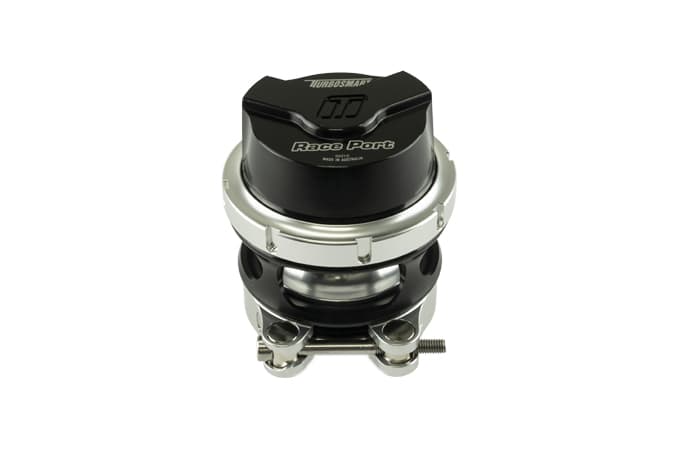

Turbosmart RacePort Female GenV - Black No Weld Flange
Turbosmart Raceport BOV suit Female (Tial) Flange
No Weld on Fitting Supplied.
Will fit Tial Q Weld on Flanges.
Famous for being an amazingly small and light BOV for forced induction competition level engines, the Race Port has race proven results from street, strip and circuit.
Featuring our unique collar design, twin 1/8 NPT pressure ports and internal flow structures, it is 50% lighter and 25% smaller than the competition, while flowing 330 CFM - making it the highest flowing BOV of its type on the market.
SUPPLIED WITH:
Vacuum fittings
V-band assembly
Blue Spring Rated -18 to -14 InHg (installed).
Suits Large capacity turbocharger systems and high horsepower engines. Ideal for circuit and drag vehicles and trucks.
Features:
Billet 6000 series aluminium construction
Quick release v-band collar for ease of installation and removal
2.0" Inlet flows over 330 CFM
MILSPEC hard anodized valve guide and stem
Hi Temp Silicon Nomex diaphragm
Positive sealing valve seat
Twin 1/8"NPT pressure ports for convenient positioning
Collar secured cap for quick spring changes
4inHg to 26inHg activation range
5 user configurable corrosion resistant springs available
Valve position sensor option
Designed, manufactured and validated in-house at Turbosmart HQ
