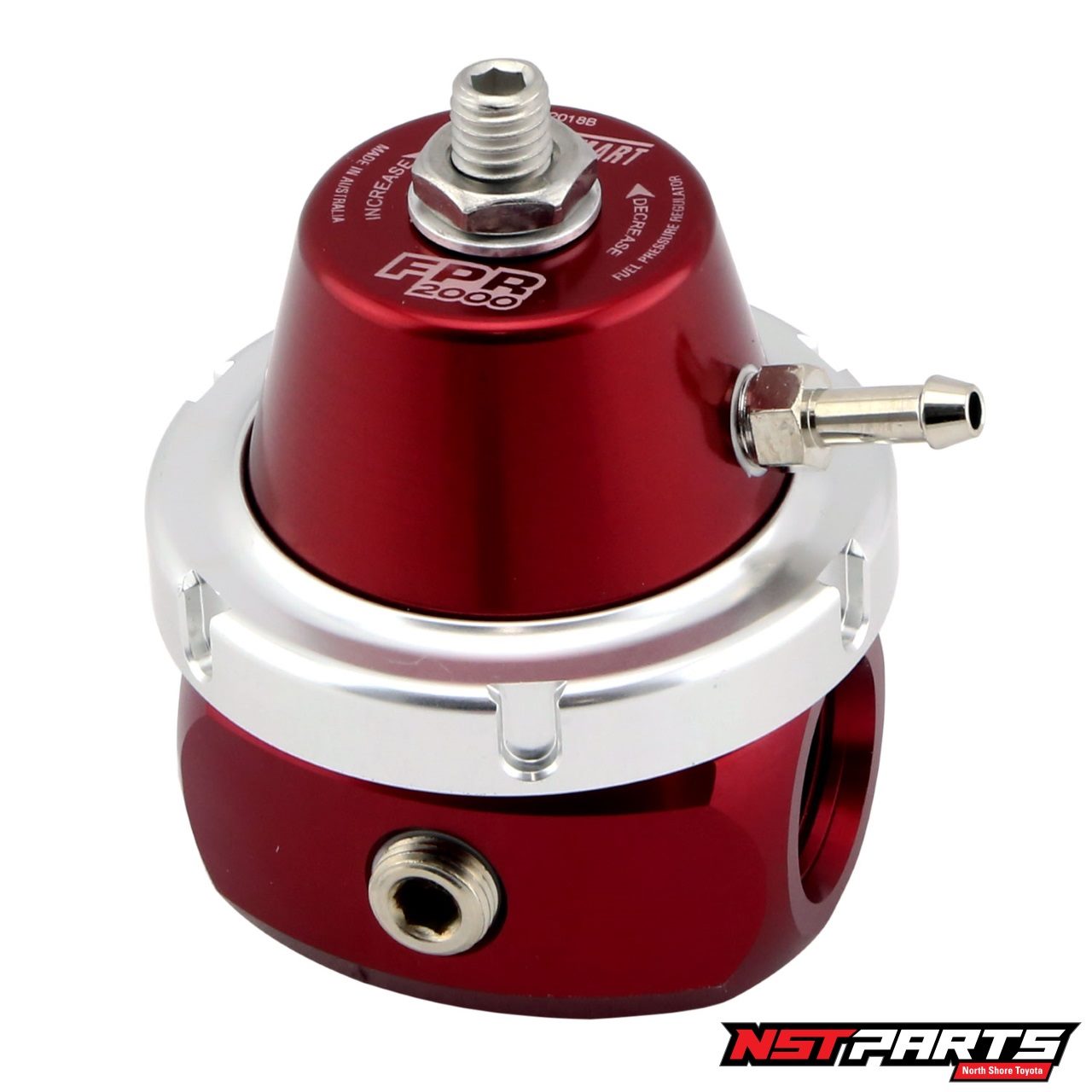

Turbosmart FPR2000 Red -8 AN Fuel Regulator / 2000HP
Colour:
Anodised Red
Turbosmart's newest High-performance EFI fuel pressure regulator is smaller, lighter and better!
Featuring two -8AN inlet ports, one -8AN return port, and one 1/8 NPT gauge port, 30-90 PSI base pressure adjustment, 1:1 ratio, premium diaphragm and stainless steel valve + seat allow for ANY fuel type including E85 and is suitable for engines with up to 1200hp fuel systems.
FPR's feature a non-directional bias to regulation, so no matter where the fuel comes in they will regulate the same.
Factory tested.
Supplied With:
Mounting bracket
retaining clip
vacuum fitting
gauge port blank.
EFI fuel regulator
3 x -8AN ports
1/8" NPT gauge port
Capable of regulating up to 2000hp of fuel flow
1:1 manifold pressure ratio with no load losses
30-95psi base pressure range
Stainless steel internals providing maximum integrity and reliability
Suitable for all fuel types
Operational between -35C to +200C
MILSPEC diaphragm
Bracket and retaining clip supplied
Pressure port 1/16 NPT with nipple supplied
Manufactured, assembled and validated in-house at Turbosmart HQ
Comparable to Tomei Type-S / Tomei Type-L / Sard FPR units!
